base oven
base oven flat floor version
base oven flat floor version
base oven flat floor version
base oven shown with flat floor for rolling in carts

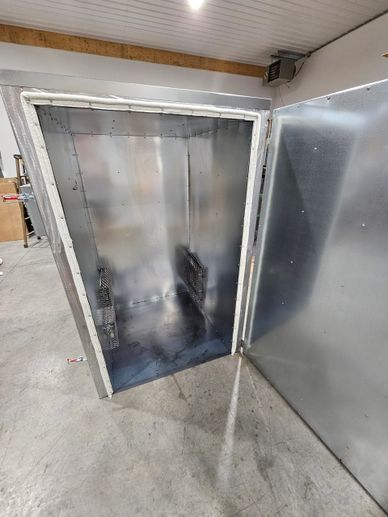

base oven inside
base oven flat floor version
base oven flat floor version
base ovens have no racks or fixtures inside, all come standard with basic circulation fan and 9g expanded metal heater guards
base oven with casters
base oven flat floor version
base oven with casters
the base oven with casters features an insulated floor so you can roll the unit around your shop, it is meant for hand loading parts

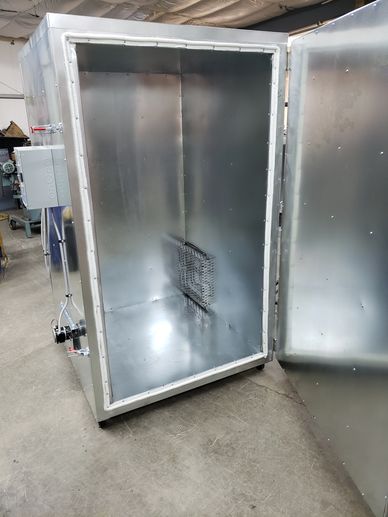

base oven internal
base oven internal
base oven with casters
the base oven with casters includes expanded metal heater guards as well as a circulation fan
base oven specs
base oven internal
base oven specs
internal size: 40" w 44" deep 72" tall
heating power : 12kw
power requirements: 240v single phase 53amps
welded C-channel construction
g90 galvanized sheeting
1200f mineral wool insulation
wiring ran external
high temperature wire ran to heaters
digital PID temperature thermostat
magnetic relay outputs
circulation fan
welded door hinges
cam lock latches
max temp 500f
heat up time on 240v 12-14mins empty.
can be used for many applications
powder coating
ceramic coatings
low temp applications
price: $3650.00
same price for either version, flat floor or with casters.
requires manual disconnect supplied by installer at oven during hookup
ovens are not UL listed
