deluxe oven

deluxe oven

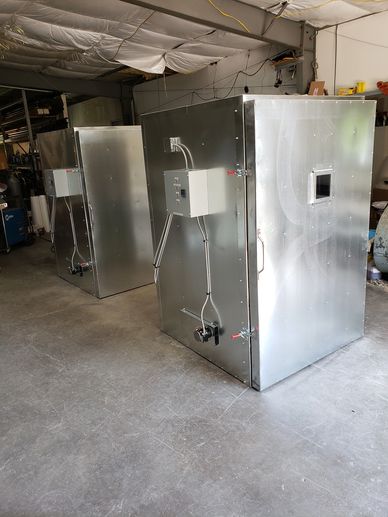

shown is a deluxe oven "flat floor" version, it is meant for rolling in carts








we offer the deluxe oven in a "flat floor version and also with casters for rolling around your shop

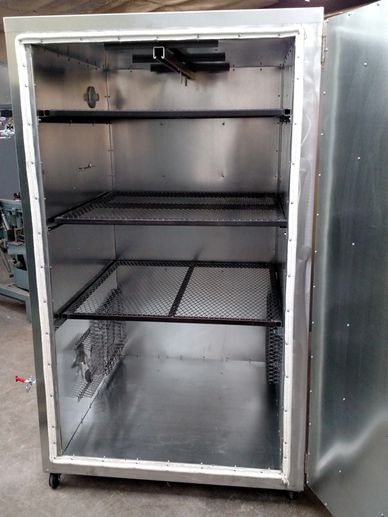

inside the deluxe oven it includes 3 shelves, over head trolley and a light fixture


the shelves are welded box tubing with expanded metal welded to that framing. the shelves are removable


the over head trolley is a piece of track that includes 2 rollers for hanging large parts to move into the oven a handy feature if you dont have roll in carts. max weight is 200lbs

Detail your services

 deluxe oven specs:


internal size:  40" w 44" deep 72" tall

heating power : 12kw

power requirements: 240v single phase 53amps

welded C-channel construction

g90 galvanized sheeting

1200f mineral wool insulation

wiring ran external

high temperature wire ran to heaters

digital  PID temperature thermostat

magnetic relay outputs

circulation fan

welded door hinges

cam lock latches

max temp 500f


heat up time on 240v  12-14 mins empty.


price:  $3540.00



same price for either version, flat floor or with casters.


ovens are not UL listed
